Low glareCool roomFood grade (HACCP certified)Recessed / surface mount
Australian-owned industrial lighting specialistFounded 2011Low glare, cool room, food-grade and industrial low bay expertise
An LED low bay light is an industrial light fitting designed for lower mounting heights, typically up to about 7 metres. It spreads light more broadly than a high bay, helping improve visibility across workshops, dispatch areas, canopies, loading zones and other commercial spaces where ceiling height is limited.

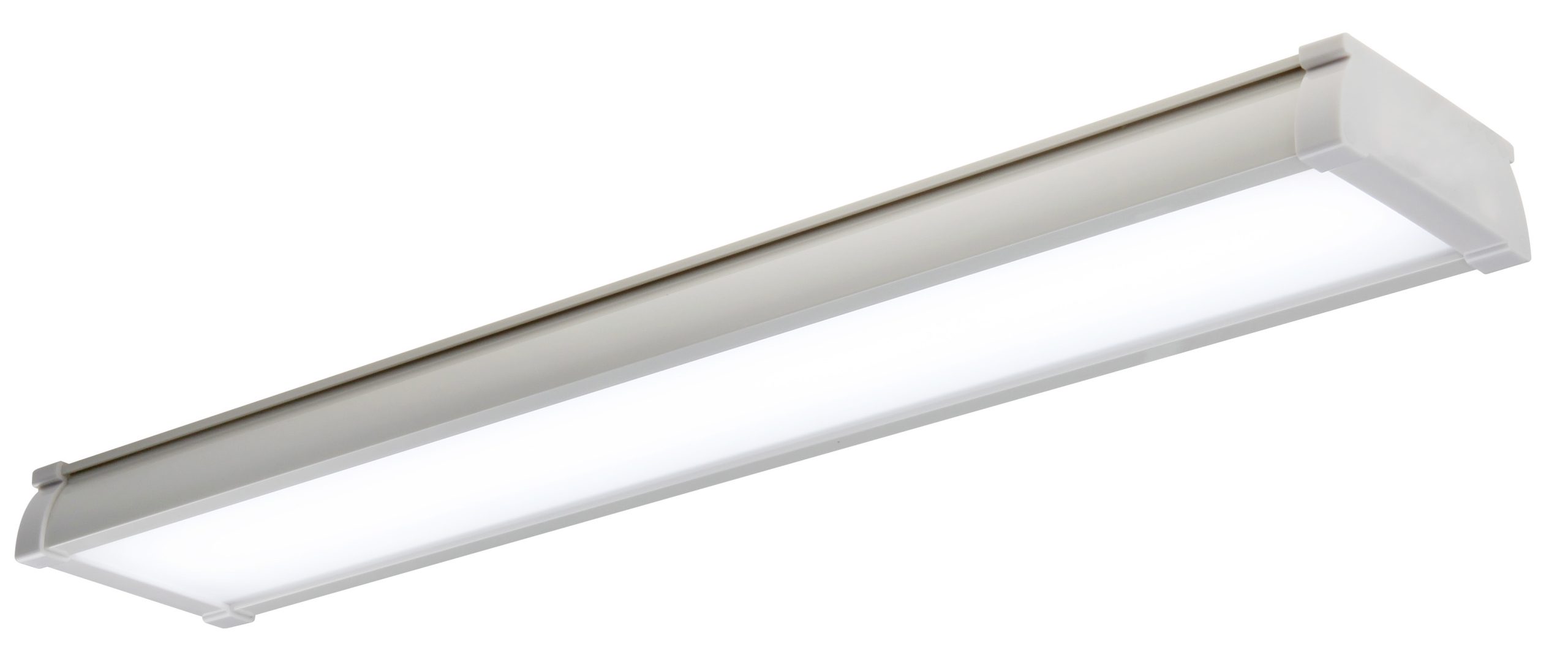

Linear sealed low bay option

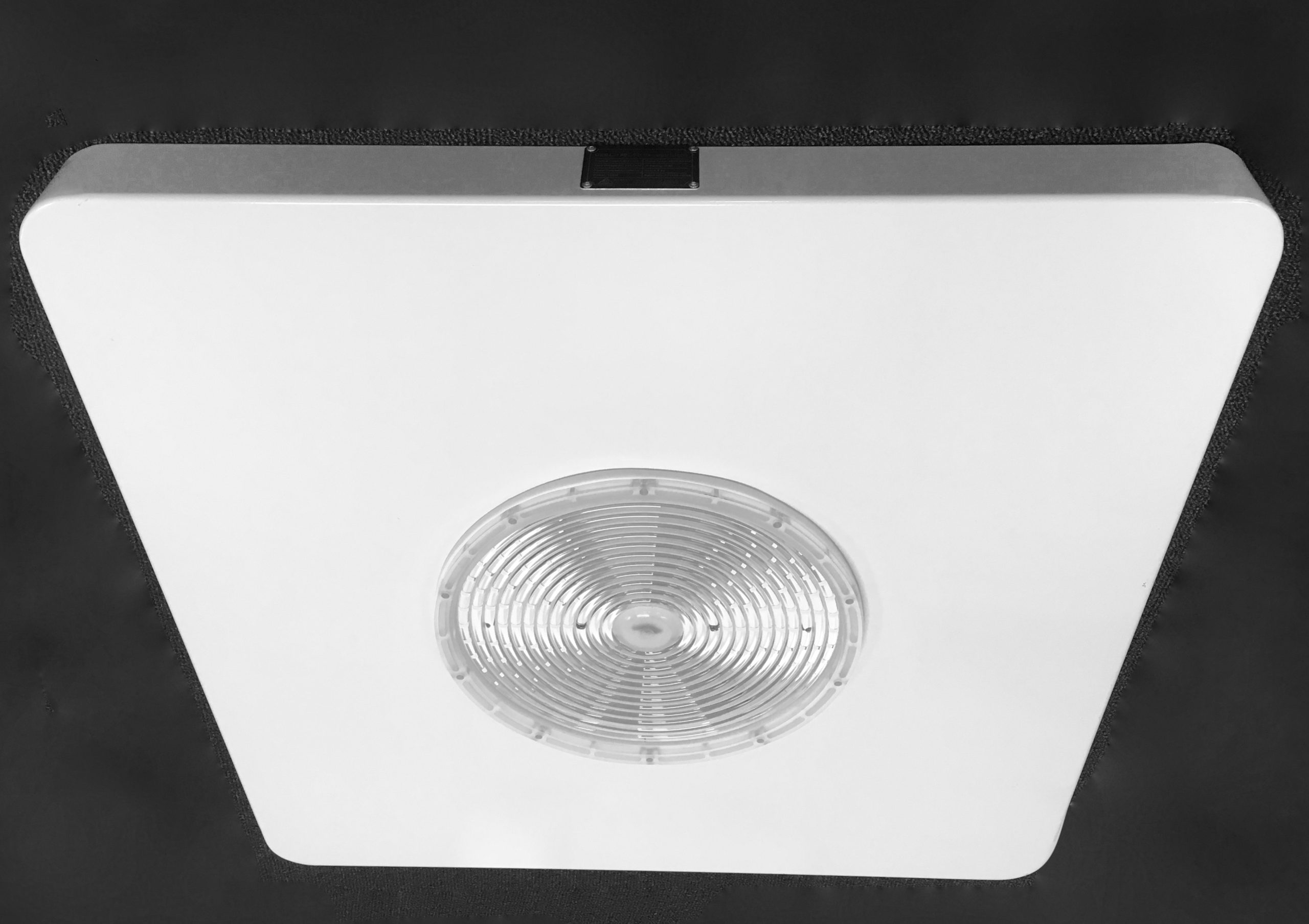

Sealed low-profile fitting

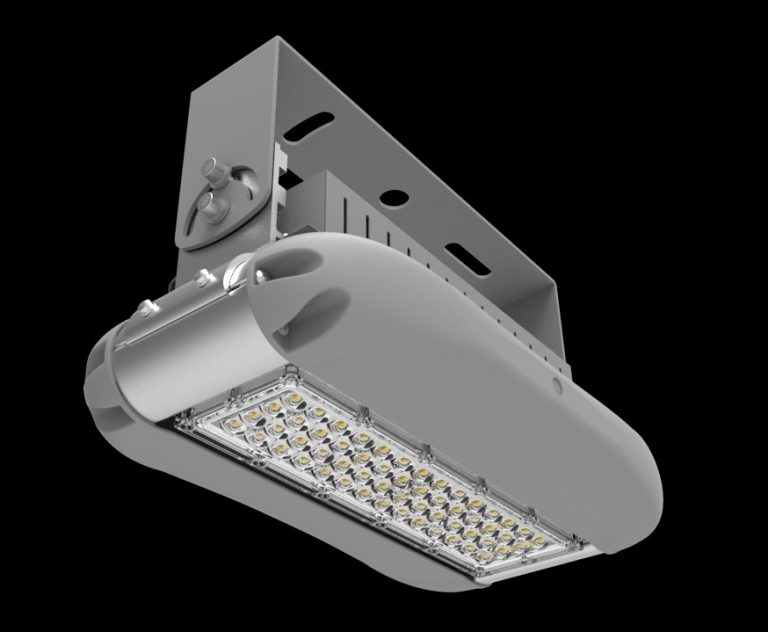

Compact bay-style fitting, wide beam options
Specification note: use this guide to narrow the fitting type. Exact wattage, lumen output, CCT, CRI, IP rating, dimming compatibility, rated life, warranty and certification are confirmed as part of the lighting review.
For dispatch, picking, lower ceiling storage and logistics areas where labels, stock and movement paths need clear visibility.
For lower ceiling production areas where glare control, beam spread and reliable output matter around machinery, workstations and staff movement zones.

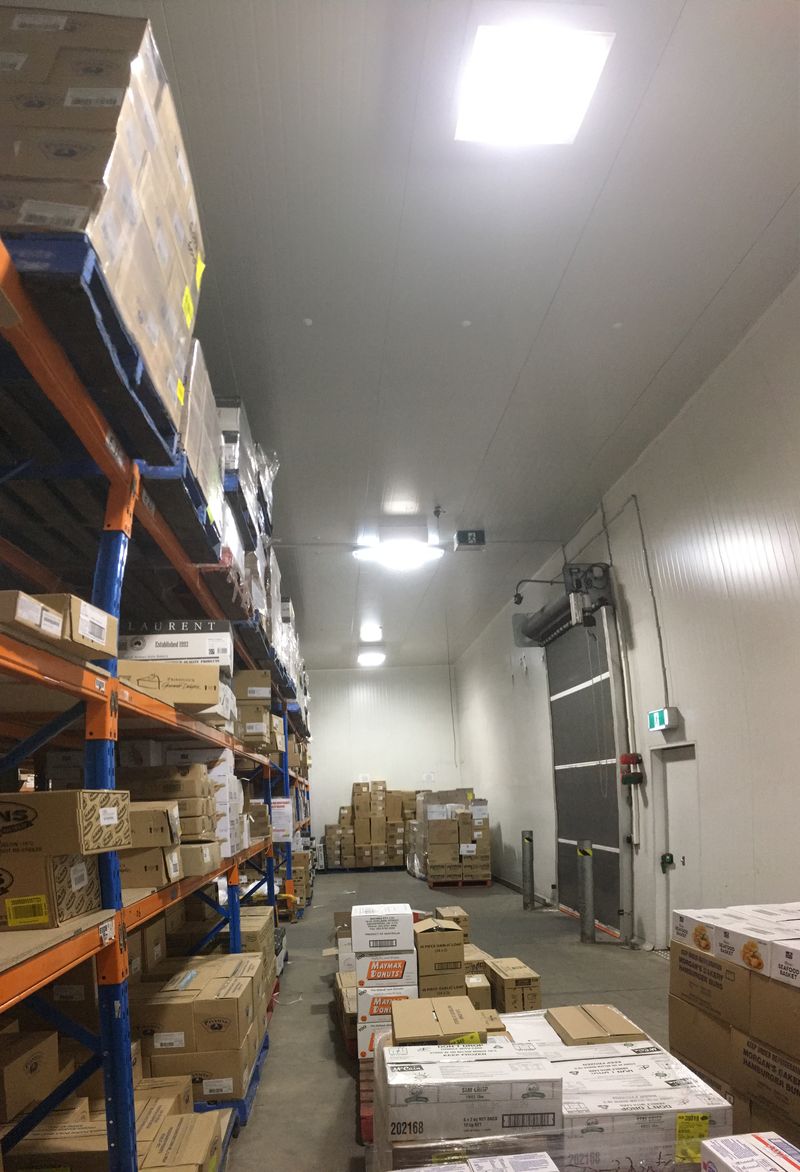

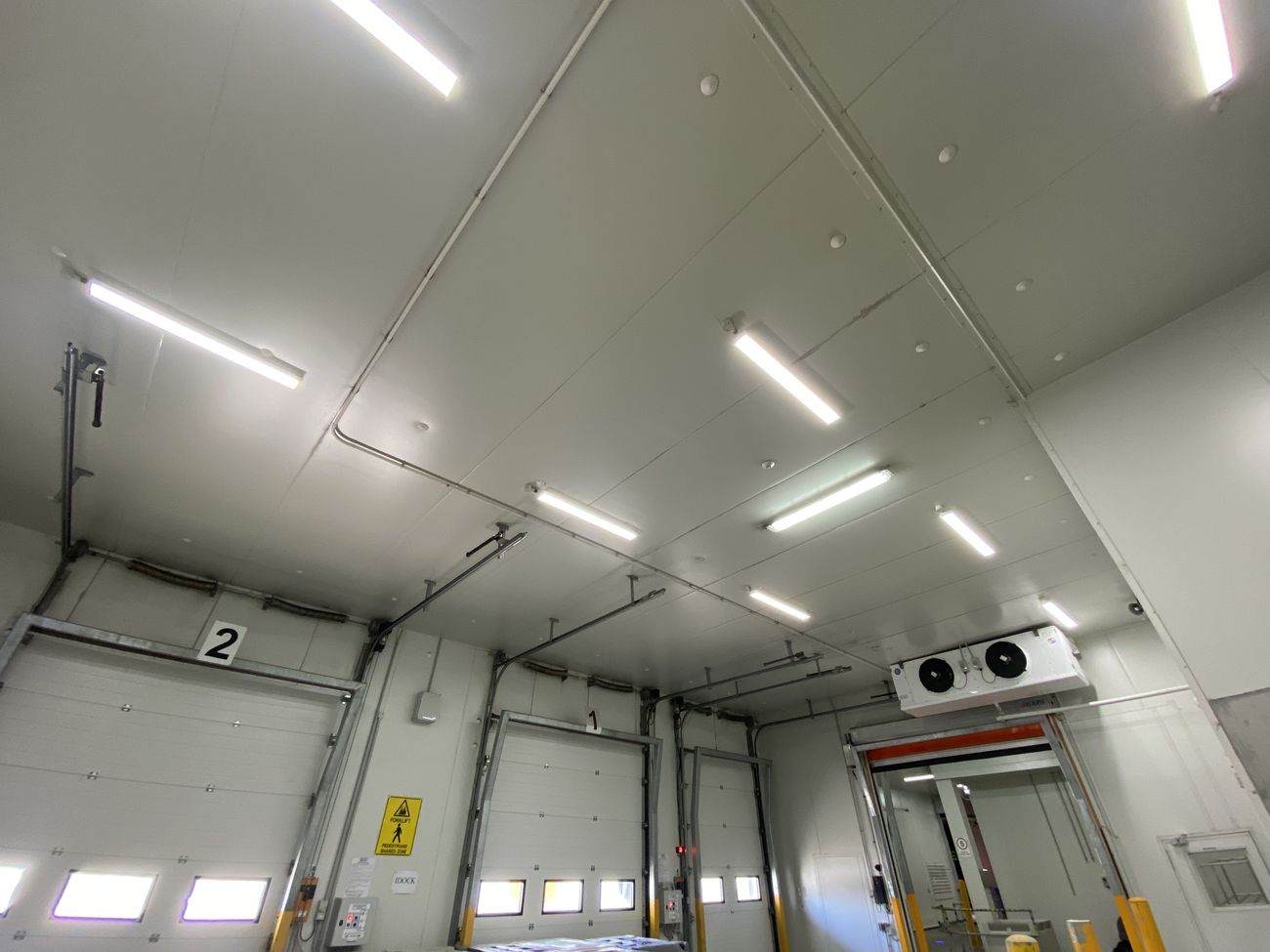

For cool rooms, refrigerated dispatch areas and insulated panel ceilings where fittings need to suit moisture, temperature and access constraints.
For hygiene-sensitive production and packing spaces where food-grade or HACCP-certified lighting may be required.

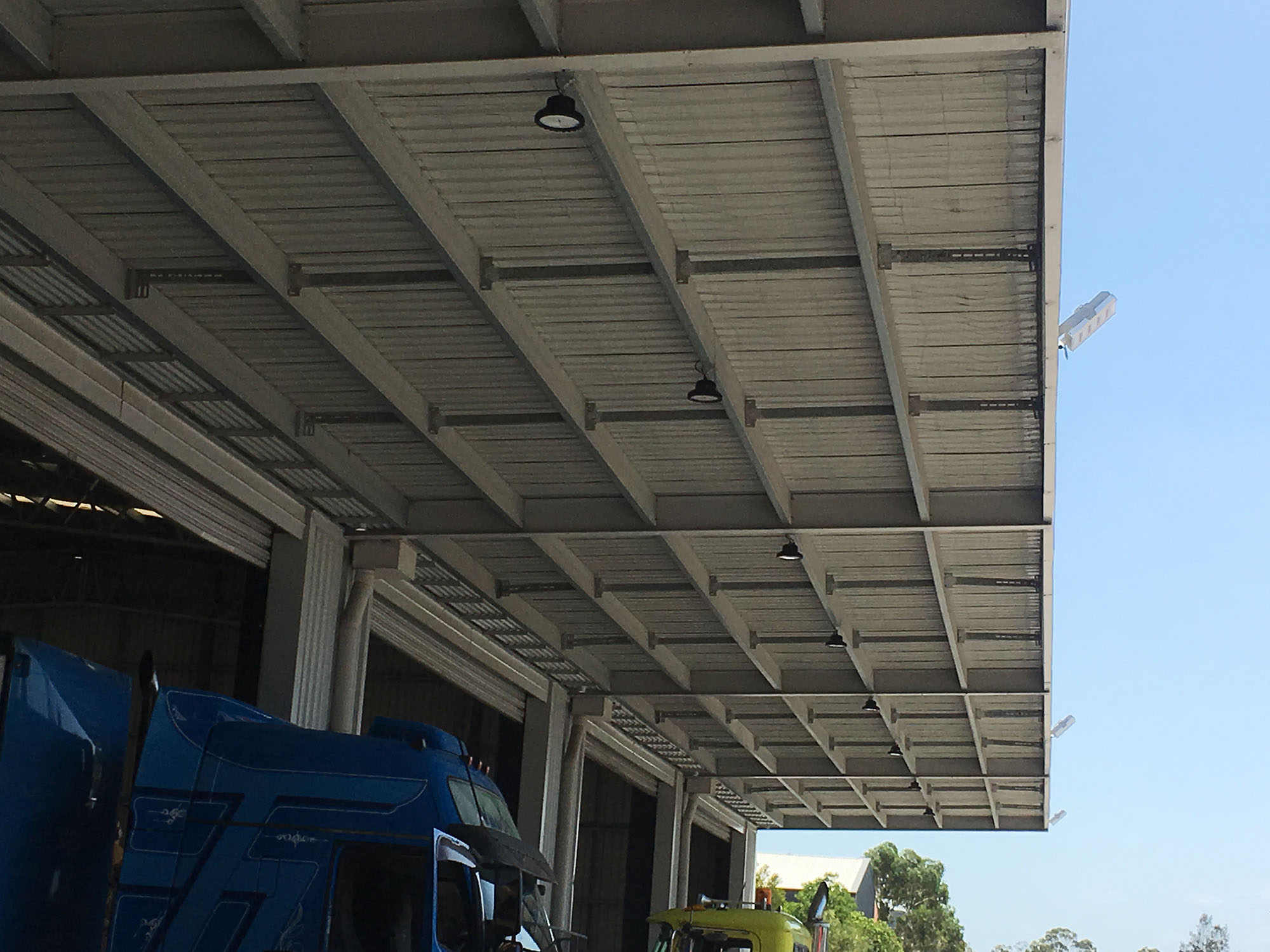

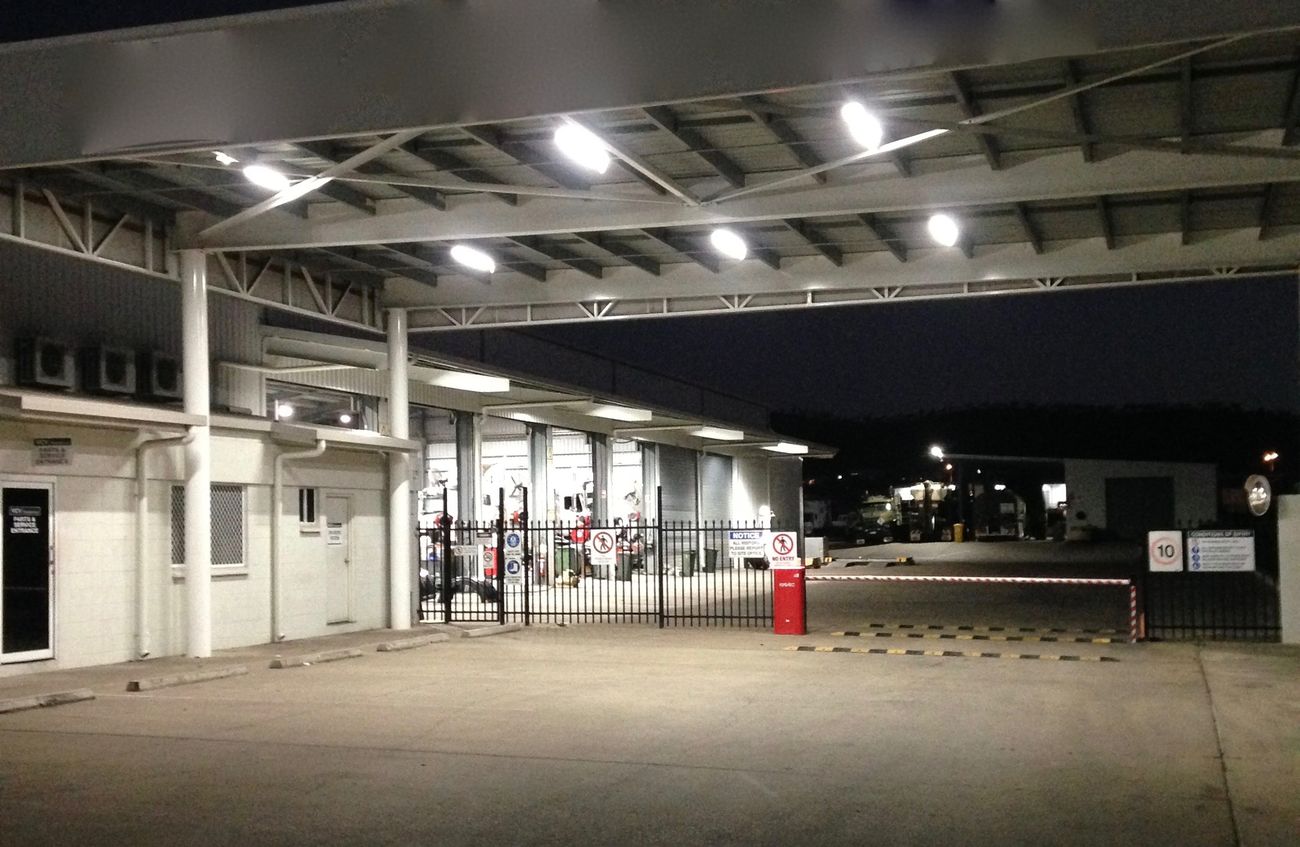

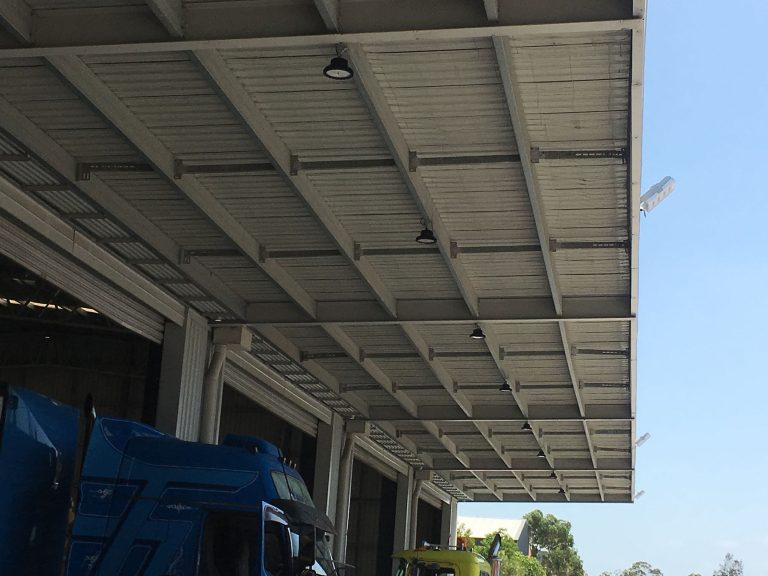

For covered awnings, loading areas and external work zones that need low-profile, sealed or canopy-style lighting.
For lower-ceiling work areas that need low-glare, even coverage over benches, machinery and staff movement zones.
| Criteria | LED low bay | LED high bay |
|---|---|---|
| Typical mounting height | 4-7 m | 7 m and above |
| Beam behaviour | Wider spread across a lower ceiling area | More concentrated output to reach the floor |
| Glare control | More important because the fitting sits closer to eye level | Less affected by eye-level proximity |
| Typical spaces | Workshops, dispatch areas, canopies and cool rooms | Warehouses, factories and high-ceiling storage |
We specify low bay lighting by starting with mounting height, not wattage. At lower ceilings, a fitting that is too narrow can create uneven patches, while a fitting that is too bright can create glare for staff working underneath it.
Moisture, dust, canopy exposure, panel ceilings and operating temperature then narrow the product choice. The aim is not simply more light. It is the right spread of light, at the right height, with a fitting suited to the operating conditions and maintenance access.
This video shows smart dimming control in a warehouse environment, activating lighting ahead of movement to support visibility, safety and energy efficiency.
Wattage depends on mounting height, target lux level, fitting spacing and the task being performed. The low bay range can cover lower-output fittings through to higher-output options for 5-7 m spaces. A site assessment confirms whether the answer is wattage, spacing, beam angle or layout.
Yes, where the fitting, IP rating and mounting method suit the exposure. Canopies, awnings and loading docks often need lower-profile industrial lighting with moisture resistance and secure mounting. The final specification should consider wind exposure, water ingress risk, access and the required light level below.
LED low bay lighting is used at lower mounting heights, usually where wider light spread and glare control are important. LED high bay lighting is used above about 7 metres, where the fitting needs enough output and beam control to reach the floor without spreading too thinly.
Only if the fitting is rated for the operating temperature and moisture conditions. Cool rooms and insulated panel ceilings need fittings selected for low temperature, condensation risk and access constraints. Standard ambient fittings may not be suitable, even if the mounting height looks like a low bay application.
This is broadly more likely to be correct but will depend far more on the beam angle of the proposed light than whether it is labelled as being a low bay fitting. If you are trying to address a specific shortcoming of the existing lights, it is far better to get some advice and lighting designs. This step is worth it for peace of mind, and avoids the risk of selecting another unsuitable fitting. The right fitting might even cost less than the one you thought you needed.
This is very similar to the wattage question above. The right answer depends heavily on your actual ceiling height, which affects how far apart your lamps can be, and your intended usage in the space. Low-occupancy storage needs a lot less illumination than a final inspection zone for a manufacturing process.
As a rough guide, you can space low bay lights a similar distance apart to what the ceiling height is. So a 6 m ceiling can have lights approximately 6 m apart. But this will vary according to the light fixture beam angle and how uniform the light needs to be in the space. We always recommend getting a lighting design done to be certain, even for a small space. Endura Light does not charge for this service. We want to make sure every customer ends up with the right product for their needs.
For ceilings above 7 metres where stronger output and beam control are required.
For sealed linear lighting and lower-ceiling industrial areas.
For refrigerated rooms, insulated panel ceilings and cold storage environments.
An add-on for zones with variable traffic or low-pick periods.
We believe that high-performance facilities require more than just average illumination. We are proud to collaborate with organisations that demand uncompromising safety, durability, and energy efficiency in their daily operations.
Our experts design and implement high-performance industrial lighting across Australia. Save money and enhance efficiency in your industrial space.
